Restoring Coastal Ecosystems: Addressing Oil Spills and Marine Pollution in Line with SDG 14
Coastal ecosystems, encompassing mangroves, coral reefs, seagrass meadows, estuaries, and salt marshes, are vital for maintaining global biodiversity, regulating climate, and supporting the livelihoods of millions of people, particularly in coastal and island communities. These ecosystems provide crucial ecosystem services, including acting as natural buffers against storm surges and coastal erosion, sequestering carbon, and breeding and breeding grounds for countless marine species. They are also essential for global food security, supporting fisheries that feed billions of people worldwide.
However, human activities increasingly threaten coastal ecosystems, particularly oil spills and marine pollution. Oil spills release vast amounts of toxic hydrocarbons into marine environments, causing widespread damage to habitats and species. Mangroves suffocate under oil coverage, coral reefs bleach and die, and fish populations decline due to contamination and habitat loss.
Marine pollution, which includes plastic waste, chemical runoff, untreated sewage, and microplastics, further exacerbates the degradation of these ecosystems. Agricultural runoff laden with fertilizers and pesticides creates hypoxic dead zones, such as the one in the Gulf of Mexico, where oxygen levels are too low to support marine life. Plastic pollution, which has reached alarming levels with over 11 million tons entering the oceans annually, entangles wildlife, obstructs feeding, and releases harmful microplastics into the food chain.
Addressing these mounting threats is integral to achieving Sustainable Development Goal (SDG) 14: Life Below Water, which aims to conserve and sustainably use the oceans, seas, and marine resources for sustainable development. Protecting and restoring coastal ecosystems aligns with global commitments like the Convention on Biological Diversity (CBD) and the Paris Agreement, as these ecosystems play a pivotal role in climate regulation and biodiversity preservation.
The urgency to act is evident as the health of coastal ecosystems continues to decline. Restoring these vital habitats requires a multi-faceted approach, including enforcing stricter pollution regulations, advancing technological solutions for oil spill clean-up, reducing plastic waste at the source, and promoting sustainable agricultural practices to minimize runoff. Collaborative global efforts can ensure the resilience of coastal ecosystems, safeguarding their ecological, economic, and cultural importance for future generations.
Understanding the Problem: The Threat of Oil Spills and Marine Pollution
Oil Spills: A Major Threat to Marine Ecosystems
Oil spills, one of the most severe forms of marine pollution, release massive amounts of crude or refined petroleum into the ocean, often due to tanker accidents, pipeline leaks, or offshore drilling mishaps. These spills introduce toxic hydrocarbons into the marine environment, wreaking havoc on aquatic ecosystems, wildlife, and coastal economies.
Oil spills have profound and lasting impacts on marine and coastal ecosystems. The effects vary based on the type of oil, the volume spilled, environmental conditions, and the specific habitats affected. Here’s a detailed overview of the ecological impact of oil spills, supported by recent findings.
Environmental Impact
Coating and Toxicity
Marine Wildlife: Oil spills severely affect seabirds, as oil coats their feathers, destroying insulation and buoyancy. This often leads to hypothermia or drowning. Marine mammals such as seals and otters also suffer from loss of insulation, making them vulnerable to temperature fluctuations and increasing mortality rates due to hypothermia.
Toxic Effects: Oil’s toxic components are most harmful during the initial spill phase. Marine organisms, especially fish larvae, and juveniles, are particularly susceptible to these toxins, which can disrupt growth and reproduction, ultimately affecting future fish populations.
Coral Reefs
Coral reefs are highly vulnerable to damage from oil spills, which can have immediate and long-term detrimental effects on these ecosystems. Here’s a detailed overview of how oil spills impact coral reefs, supported by recent data and findings.
Damage to Coral Reefs from Oil Spills
A. Direct Effects of Oil Exposure
Smothering and Toxicity: Oil directly coats corals, smothering them and leading to significant mortality. Intertidal corals are particularly susceptible, as oil can settle on them during low tide. Branching corals face higher risks due to their structure and larger plate-like corals.
Chronic Oil Exposure: A notable incident in Panama in 1986 resulted in a 2-million-gallon oil spill that reduced coral numbers, total cover, and species diversity by up to 95% for years afterward. This highlights the severe long-term impacts that can result from significant oil spills.
B. Indirect Effects
Increased Susceptibility to Bleaching: Oil pollution makes corals more susceptible to bleaching, which is the loss of symbiotic algae crucial for coral health. The combination of oil exposure and rising sea temperatures exacerbates bleaching events, leading to increased mortality rates among coral populations.
Impaired Reproduction: Oil exposure can disrupt coral reproduction by harming adult corals and decreasing the viability of larvae. Studies have shown that oil dispersants can be more toxic than oil, causing tissue damage and impairing reproductive success.
Case Studies
Deepwater Horizon Spill (2010): This spill is considered one of the largest in history and had devastating effects on marine ecosystems, including coral reefs. The research found that approximately 30% of corals exhibited damage post-spill, with some sites experiencing over 90% damage due to exposure to both oil and dispersants.
Mauritius Oil Spill (2020): A cargo ship accident released tons of oil into the pristine waters surrounding Mauritius, threatening its coral reefs. The spill highlighted the vulnerability of these ecosystems, as chronic oil toxicity impedes coral reproduction and growth, particularly during critical spawning periods.
Long-Term Implications
Persistent Damage: Research indicates that even after cleanup efforts, the effects of oil spills can persist for years. For example, studies following spills have documented prolonged reductions in gonad size during spawning and ongoing injury levels in corals five years post-event.
Economic Impact: Coral reefs provide significant economic value through tourism and fisheries. The degradation of these ecosystems due to oil spills threatens biodiversity and impacts local economies dependent on healthy marine environments.
The evidence underscores the urgent need for effective spill response strategies and protective measures for coral reef ecosystems. Preventative actions are essential to minimize the risk of oil spills and mitigate their impacts on these vital marine habitats. Enhanced offshore drilling and shipping practices regulations are critical in safeguarding coral reefs from future oil pollution events.
Fish and Invertebrates
Impact on Populations: Larvae and juvenile fish are especially vulnerable to oil toxicity. Contaminated sediments in shallow waters can destroy benthic habitats, essential for many marine species’ life cycles. The long-term effects can lead to reduced fish populations in affected areas.
Coastal Habitats
Mangroves and Marshes: Coastal ecosystems such as mangroves, seagrass meadows, and salt marshes absorb oil spills, leading to plant suffocation and disruption of sediment ecosystems. Due to the complexity of their ecological roles, recovery in these environments is slow and can take decades.
Persistence of Oil: Research indicates that oil can persist in sediments and marshes for over 30 years, continuously releasing toxic compounds that harm local ecosystems. For example, studies in Prince William Sound revealed that remnants from the 1989 Exxon Valdez spill continue to affect marine life today.
Recent Oil Spill Incidents
Singapore Oil Spill (October 2024):
A collision between Vox Maxima and Marine Honour occurred on June 14, 2024, at Pasir Panjang Terminal in Singapore, leading to a spill of approximately 400 barrels of oil1.
On October 20, 2024, an oil leak was reported from a Shell land-based pipeline at the Shell Energy and Chemicals Park on Bukom Island. Approximately 30-40 metric tonnes of a mixture of oil and water (referred to as “slop”) spilled into the water channel between Bukom Besar and Bukom Kechil Islands. The Maritime and Port Authority of Singapore (MPA) deployed containment booms and cleanup vessels, and by October 30, Shell confirmed that the cleanup had been completed with no new oil sightings reported.
Medway River Oil Spill (October 2024): On October 10, 2024, an oil spill was detected on the Medway River in Yalding, UK. The Environment Agency responded promptly to identify the source and control the situation. Booms were installed to contain the spill, and cleanup operations commenced while navigation between Anchor Sluice and Hampstead Lock was temporarily closed.
Bataan Oil Spill (August 2024): In Limay, Bataan, Philippines, an oil spill incident occurred that prompted ongoing monitoring and cleanup efforts by local authorities. As of August 22, 2024, the Department of Agriculture-Bureau of Fisheries and Aquatic Resources was actively involved in assessing the impact on marine life and the surrounding environment due to this spill.
2024 Manila Bay Oil Spill: On July 24, 2024, the MT Terra Nova capsized and sank in 34 meters of water in Manila Bay, Philippines, resulting in an estimated 1,500 barrels of oil spilled. The ship was registered under the Philippine flag.
Ceres I Collision: On July 19, 2024, the Ceres I collided with the Hafnia Nile off Pedra Branca in the South China Sea. Details regarding the amount of oil spilled remain unknown.
Karak Highway Tanker Rollover: A tanker truck rollover incident in Selangor, Malaysia, on May 13, 2024, also contributed to local oil contamination, although specific spill volumes were not reported.
Gulfstream Spill: In Trinidad and Tobago on February 7, 2024, an incident involving the Gulfstream resulted in a significant spill of approximately 4,773 barrels of oil.
MV Wakashio (2020)🙁Mauritius)
Over 1,000 tons of oil leaked into the pristine waters near the island. The spill devastated coral reefs, mangroves, and the Blue Bay Marine Park, a UNESCO-designated site. Mauritius faced losses exceeding $20 million in tourism and fisheries. Recovery efforts involved deploying over 3,000 volunteers for clean-up, but long-term damage to biodiversity persists.
Deepwater Horizon (2010)(Gulf of Mexico)
The largest accidental marine oil spill, with 4.9 million barrels of oil discharged over 87 days. Approximately 1,300 miles of shoreline were affected. Declines in marine species like dolphins and deep-sea corals were observed even a decade later. The spill caused an estimated $8.7 billion in damages to fisheries and tourism. BP, the responsible company, paid over $60 billion in fines and clean-up costs.
Norilsk Diesel Spill (2020)( Russia (Arctic Region)
Approximately 21,000 tons of diesel oil leaked into the Ambarnaya River due to a collapsed fuel tank. The spill affected 180,000 square meters of fragile Arctic ecosystems. Diesel oil toxicity caused massive fish kills and contaminated water supplies. Cleanup costs exceeded $2 billion, with lasting implications for Arctic biodiversity.
Recent oil spill incidents in Pakistan have raised concerns about environmental impacts and response capabilities. Here are some significant events and findings:
MV Tasman Spirit (2003): One of the most notable spills occurred when the MV Tasman Spirit, carrying 67,535 tonnes of Iranian light crude oil, ran aground near Karachi on July 27, 2003. The incident resulted in an estimated 27,000 tonnes of oil spilling into the sea, affecting approximately 14 kilometers of coastline, including Clifton Beach. A major cleanup operation involved aerial spraying of dispersants and manual recovery efforts over several months.
Yashika 6 (1998): Earlier, in 1998, the Yashika 6 spilled furnace oil west of Karachi. Although cleanup operations were limited due to weather conditions and resource availability, no oil reached the shoreline during this incident.
Recent Detection and Monitoring (Pakistan)
Oil Spill Detection (2017-2023): A study utilizing deep learning techniques identified 92 oil spill incidents in Pakistan’s Exclusive Economic Zone (EEZ) from January 2017 to December 2023. This indicates a concerning trend in oil spills over recent years, highlighting the need for improved monitoring and response strategies.
These incidents highlight ongoing challenges related to oil transportation and environmental protection efforts globally. The impacts of such spills can be devastating, affecting local ecosystems and economies.

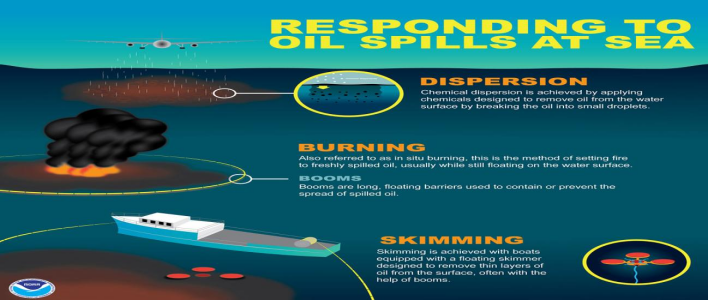

Technological Innovations in Spill Response
Technological innovations in oil spill response have significantly evolved, particularly following major incidents like the Deepwater Horizon spill. Here’s an overview of recent developments and advancements in this field:
Technological Innovations in Spill Response
1. Enhanced Modeling and Prediction Tools
GNOME Suite: The National Oceanic and Atmospheric Administration (NOAA) has improved its oil spill modeling capabilities through the GNOME (General NOAA Operational Modeling Environment) Suite. This suite helps predict the movement, trajectory, and behavior of oil spills, providing responders with critical data during emergencies. The tools have become more accurate and robust, addressing unique challenges posed by deep-water spills.
2. Data Visualization and Integration
Environmental Response Management Application (ERMA): This GIS-based tool integrates real-time data to assist responders in visualizing oil spill impacts and coordinating emergency efforts. ERMA enhances situational awareness by overlaying various data types on interactive maps, aiding in planning and response.
Data Integration Visualization Exploration and Reporting (DIVER): Developed post-deepwater Horizon, DIVER serves as a centralized data repository for environmental data related to oil spills. It allows scientists to upload and share validated information, facilitating collaborative research and effective response strategies.
3. Remote Sensing Technologies
Oil Thickness Classification: New remote sensing methods are being developed to classify oil thickness from a distance, improving the assessment of spill severity and guiding response efforts more effectively.
4. Acoustic Technologies
Flow Rate Measurement: Innovations in acoustic technologies allow for more accurate measurement of oil flow rates from deep-sea sources, enhancing the understanding of spill dynamics and informing response strategies.
5. Advanced Containment Systems
Rapid H2O System: This innovative system features advanced containment and recovery capabilities, representing a significant leap in technology for immediate response to oil spills. It is designed to quickly contain spills and facilitate efficient recovery processes.
6. Research Initiatives
The Gulf of Mexico Research Initiative (GoMRI) has funded extensive research over the past decade to enhance oil spill response technologies. This includes studies on subsurface oil plumes, interactions between oil and marine life, and alternative dispersant technologies.
7. Disaster Response Centers
NOAA established the Disaster Response Center (DRC) in Mobile, Alabama, which serves as a central coordination point for federal, state, and local partners during emergencies. The DRC enhances preparedness and response capabilities for various hazards, including oil spills.
These technological advancements reflect a concerted effort to improve preparedness for oil spills, enhance response effectiveness, and mitigate environmental impacts. Continuous innovation in this field is crucial for protecting marine ecosystems and supporting recovery efforts following spill incidents.
Oil spills present a monumental challenge to marine ecosystems, coastal economies, and environmental health. Technological advancements offer new and improved methods for oil spill containment, recovery, and mitigation. Below is an expanded discussion on key innovations:
Bioremediation: Harnessing Nature for Cleanup
Bioremediation is a biological approach to cleaning up oil spills, utilizing microorganisms to degrade and remove hydrocarbons from contaminated environments. This method can be categorized into two main strategies: bioaugmentation and biostimulation.
Bioremediation Techniques
Bioaugmentation
This involves the addition of specific microbial cultures to contaminated sites to enhance the degradation of oil. These microbes are selected for their ability to metabolize hydrocarbons effectively.
Bioaugmentation can significantly increase the rate of oil degradation, especially in environments where native microbial populations are insufficient to handle the contamination. For instance, during the Exxon Valdez oil spill, the introduction of oil-eating microbes led to a notable reduction in oil presence within weeks.
2. Biostimulation
This technique enhances the existing microbial population by adding nutrients (such as nitrogen and phosphorus) to stimulate growth and activity. The goal is to create optimal conditions for naturally occurring bacteria to thrive and degrade oil more efficiently.
Studies have shown that biostimulation can lead to a tenfold increase in oil-degrading microbes, facilitating faster cleanup processes. For example, nutrient addition during the Exxon Valdez cleanup resulted in substantial reductions in oil coverage on affected shorelines.
Advantages of Bioremediation
Cost-Effectiveness: Bioremediation is generally less expensive than physical or chemical cleanup methods. It can also be implemented as a secondary treatment after initial removal efforts.
Environmental Safety: This method is more environmentally friendly, as it utilizes natural processes without introducing harsh chemicals into ecosystems.
Complete Degradation: Microorganisms used in bioremediation can completely mineralize hydrocarbons into harmless byproducts like carbon dioxide and water, rather than merely transferring contaminants elsewhere.
Recent Findings and Applications
Field Studies: Research indicates that bioremediation can significantly reduce cleanup times. For instance, spills that would typically take 5-10 years to recover naturally may be cleaned up in 2-5 years with bioremediation techniques.
Agro-industrial Waste Utilization: Recent trends involve using low-cost agro-industrial wastes (e.g., soybean waste, molasses) as nutrients for microbial growth, enhancing bioremediation efficiency while reducing costs.
Environmental Monitoring: Continuous monitoring of hydrocarbonoclastic bacterial communities shows that specific bacterial strains thrive under varying conditions and contribute significantly to oil degradation.
Challenges
Despite its advantages, bioremediation faces challenges such as:
Time Requirement: The process can be slow initially due to the lag phase before microbial populations grow exponentially.
Environmental Variability: Each spill site has unique characteristics (type of oil, environmental conditions) that can affect bioremediation effectiveness, necessitating tailored approaches for each incident.
In conclusion, bioremediation presents a promising method for addressing oil spills through natural processes. Continued research and field applications are essential for optimizing these techniques and enhancing their effectiveness in various environmental contexts.
Recent Advances:
Genetic engineering is being used to enhance the efficiency of microbes, enabling them to break down complex hydrocarbons in shorter time frames.
Studies on Arctic and deep-sea microbes aim to address oil spills in extreme environments where conventional cleanup methods are less effective.
Example: Bioremediation was successfully employed during the Deepwater Horizon spill in the Gulf of Mexico, where oil-degrading bacteria were instrumental in reducing surface oil slicks.
Oil Skimmers: Mechanized Recovery Solutions
Oil skimmers are essential devices used to remove oil from the surface of water, particularly in the context of oil spills and industrial processes. They operate on principles of specific gravity and surface tension, effectively separating oil from water. Here’s an overview of the different types of oil skimmers and their applications.
Types of Oil Skimmers
Belt Skimmers
These skimmers utilize an endless belt made from corrosion-resistant materials that is submerged in the water. As the belt moves, it collects oil, which is then scraped off by wiper blades.
Ideal for continuous operation in industrial settings where oil needs to be removed regularly.
2. Disk Skimmers
Disk skimmers rotate a disk through the liquid surface, allowing oil to adhere to the disk before being scraped off into a collection container.
The effectiveness can be influenced by the amount of disk submerged and fluctuating fluid levels.
3. Drum Skimmers
These consist of oleophilic (oil-attracting) drums that rotate in the water. Oil adheres to the drum’s surface and is then scraped into a collection trough.
Capable of removing around 3% entrained water along with the oil, making them suitable for various applications.
4. Weir Skimmers
Weir skimmers use a barrier (weir) to allow oil to flow over into a collection area while minimizing water intake. They are effective for thick layers of oil. Achieve high recovery rates, making them suitable for rapid response in large spill scenarios.
Mop Skimmers
These skimmers use a mop-like medium that absorbs oil as it moves through the liquid. The medium is then wrung out to separate the oil from the water.
They can become less effective with higher viscosity oils and require regular replacement of mop materials.
Tube Skimmers
Large Tube Skimmers: Utilize a floating hose that draws oil from the surface back through a collection unit.
Mini Tube Skimmers: Smaller versions designed for tight spaces, offering lower removal capacity but useful in confined areas.
Floating Suction Skimmers
Description: These skimmers have floating intakes and are designed for use with thicker oil layers. They require additional equipment to separate emulsified oil from water effectively.
Working Principles
Oil skimmers operate based on two primary physical principles:
Specific Gravity: Oil typically has a lower density than water, allowing it to float on the surface, which makes it accessible for skimming.
Surface Tension: Oil molecules have a lower affinity for water than they do for each other, enabling them to adhere to skimming media while allowing water to drain away easily.
Applications
Oil skimmers are widely used in various contexts:
Environmental Cleanup: In response to oil spills in oceans, rivers, and lakes.
Industrial Processes: To remove waste oils from manufacturing processes and prevent contamination of coolants or cutting fluids.
Oil skimmers play a crucial role in managing oil spills and industrial waste by providing efficient methods for separating oil from water. The choice of skimmer depends on factors such as the type and thickness of the oil, environmental conditions, and specific operational needs. Continuous advancements in skimmer technology enhance their effectiveness and versatility in addressing both environmental and industrial challenges.
Sorbent materials
Sorbent materials play a crucial role in oil spill cleanup by absorbing or adsorbing oil, making them essential for effective remediation in shallow waters and sensitive coastal areas. Recent advancements, particularly in nanotechnology, have led to the development of innovative sorbent materials that enhance oil recovery and minimize environmental impact.
Sorbent Materials for Oil Spill Cleanup
Types of Sorbent Materials
Natural Sorbents: Materials such as wool, sawdust, and agricultural waste are being treated with hydrophobic coatings to create biodegradable Sorbents. These options are cost-effective and environmentally friendly, reducing the ecological footprint of cleanup operations.
Synthetic Sorbents: Advanced synthetic materials like polyethylene and polypropylene are commonly used due to their high absorption capacities.
Nanotechnology Advancements
Graphene Oxide Sponges: These sponges can absorb up to 100 times their weight in oil and are reusable after squeezing out the absorbed oil. Their unique structure allows for high porosity and surface area, enhancing oil absorption efficiency.
Aerogels:
Lightweight and highly porous, aerogels selectively absorb oil while repelling water. This property makes them particularly effective in separating oil from water without significant loss of water.
Magnetic Nanoparticles:
Coated with hydrophobic materials, these nanoparticles bind to oil and can be removed from water using magnetic fields. This method reduces the need for physical contact with contaminated areas, making cleanup safer and more efficient.
Eco-Friendly Sorbents
Recent trends focus on developing eco-friendly sorbent materials that utilize natural resources:
Biodegradable Options:
The treatment of agricultural waste with hydrophobic coatings creates biodegradable Sorbents that effectively absorb oil while minimizing environmental impact.
Cost-Effectiveness:
Utilizing readily available materials like sawdust and wool not only reduces costs but also promotes sustainability in spill response efforts.
4. Real-world Applications
Mauritius Oil Spill (2020): Graphene oxide sponges were tested in controlled environments during the Mauritius spill, demonstrating exceptional absorption efficiency. The use of advanced sorbent materials like graphene oxide highlights the potential for innovative solutions in real-world spill scenarios.
The development of advanced sorbent materials through nanotechnology represents a significant leap forward in oil spill remediation efforts. With the ability to absorb large quantities of oil while being environmentally friendly, these materials offer effective solutions for managing spills in sensitive ecosystems. Continuous research and innovation in this field are essential for improving response strategies and minimizing the ecological impact of oil spills.
2. Containment Booms: Preventing Oil Spread
Containment booms are critical tools in the response to oil spills, designed to restrict the movement of oil on water surfaces and facilitate recovery efforts. Here’s an overview of their functionality, innovations, and importance in spill management.
Functionality of Containment Booms
Barrier Creation: Containment booms act as floating barriers that prevent oil from spreading further across water surfaces. They are essential for protecting sensitive environments, such as coastlines and marshes, from the harmful effects of oil spills.
Simplifying Cleanup: By confining the oil to a specific area, booms allow responders to focus their cleanup efforts more effectively, minimizing environmental damage and reducing overall cleanup costs.
Innovations in Containment Boom Technology
1. Self-Inflating Booms
These booms automatically inflate upon deployment, significantly reducing setup time and allowing for rapid response in emergency situations.
2. Smart Booms
Equipped with sensors, smart booms can monitor oil spill movement in real time. This technology enables dynamic adjustments to containment strategies based on changing conditions.
3. Fire-Resistant Booms
Designed for in-situ burning operations, these booms minimize the environmental impact of spilled oil by allowing for controlled burning while containing the oil.
Advanced Deployment Systems
Drone-Assisted Deployment: Utilizing drones for boom deployment enhances response times, especially in remote or difficult-to-access areas. This innovation allows for quicker containment of spills before they spread.
Importance of Containment Booms
Protection of Wildlife and Ecosystems: By limiting the spread of oil, containment booms help protect vulnerable wildlife and ecosystems from contamination. Oil spills can devastate local flora and fauna, making timely containment critical.
Prevention of Long-Term Damage: Quick containment can prevent long-lasting environmental impacts associated with oil spills. If not managed promptly, spilled oil can cause damage that lasts for years.
Cost Minimization: Effective use of containment booms can significantly reduce the amount of oil that needs to be cleaned up, thereby lowering the overall costs associated with spill response.
Containment booms are vital components of oil spill response strategies. With ongoing innovations such as self-inflating designs, smart monitoring capabilities, and drone-assisted deployment, these tools are becoming increasingly effective at preventing the spread of oil and facilitating efficient cleanup operations. Their role in protecting ecosystems and minimizing economic impacts underscores their importance in environmental management practices related to oil spills.
Chemical Dispersants: Breaking Down Oil Slicks
Chemical dispersants are crucial tools in the management of oil spills, designed to break down oil slicks into smaller droplets that can disperse more easily in water. This process promotes natural biodegradation by increasing the surface area available for microbial action. Recent advancements in dispersant technology have focused on enhancing their effectiveness while minimizing environmental impact.
Advancements in Chemical Dispersants
Eco-Friendly Dispersants
Formulations: New eco-friendly dispersants are being developed to minimize toxicity to marine life and to break down faster in the environment. These formulations aim to reduce the harmful effects associated with traditional dispersants, which can be toxic to various marine organisms.
Nano-Dispersants
Nanotechnology Integration: Incorporating nanotechnology into dispersant formulations allows for more uniform dispersion of oil droplets. This enhanced dispersion can significantly improve microbial degradation rates, making the cleanup process more efficient.
Precision Application
Unmanned Aerial Vehicles (UAVs): The use of drones for targeted dispersant application ensures that dispersants are applied precisely where needed, maximizing their effectiveness while minimizing unnecessary environmental exposure. This technology allows responders to reach areas that may be difficult to access by traditional means.
Importance of Dispersant Use
Facilitating Biodegradation: By breaking oil into smaller droplets, dispersants increase the surface area available for microbial action, which accelerates the natural Biodegradation process.
Preventing Shoreline Contamination: Dispersants help prevent thick layers of oil from forming on the water’s surface, which can lead to severe contamination of shorelines and harm to coastal ecosystems.
Environmental Considerations
While chemical dispersants offer significant advantages in oil spill response, their use is not without controversy:
Toxicity Concerns: Dispersants can introduce additional chemicals into the marine environment, potentially affecting aquatic life and ecosystems. The long-term effects of these chemicals on marine organisms remain a concern.
Increased Bio-availability: Dispersing oil can increase its bioavailability in the water column, potentially exposing aquatic organisms to petroleum hydrocarbons for extended periods, which may lead to adverse effects.
Regulatory Perspectives
Regulatory bodies often recommend using dispersants only when mechanical recovery methods (like booms and skimmers) are ineffective. For instance, the Prince William Sound Regional Citizens’ Advisory Council has expressed opposition to using chemical dispersants in certain sensitive areas due to potential ecological risks.
Chemical dispersants play a vital role in oil spill response by facilitating the breakdown and dispersion of oil slicks. Recent advancements focus on improving their effectiveness while reducing toxicity and environmental impact. As technology continues to evolve, the application of eco-friendly and precision-targeted dispersants may enhance spill management strategies while safeguarding marine ecosystems. However, careful consideration of environmental impacts remains essential in decision-making processes regarding their use.
Remote Sensing and AI Integration
The integration of remote sensing and artificial intelligence (AI) in oil spill monitoring and response has transformed how incidents are detected, tracked, and managed. Here’s an overview of the advancements in satellite monitoring and AI applications for oil spill management.
Remote Sensing Technologies
Satellite Monitoring
High-Resolution Imagery: Satellites equipped with synthetic aperture radar (SAR) and optical sensors provide high-resolution imagery that can detect oil slicks on water surfaces. These slicks appear as dark patches against the lighter background of the ocean, allowing for early detection of spills.
Copernicus Program: The European Union’s Copernicus program utilizes Sentinel satellites to monitor oil spills. The Clean Sea Net service combines SAR and optical data to detect spills and track their spread, providing timely information to national authorities. This system enhances the ability to monitor illegal discharges from vessels and assess environmental impacts effectively.
Real-Time Monitoring
Dynamic Tracking: Satellite data enables real-time tracking of oil spills, allowing responders to understand how spills are dispersing due to ocean currents and weather conditions. For instance, during the MV Wakashio spill, satellite monitoring facilitated real-time adjustments to containment strategies…
AI and Machine Learning Integration
Advanced Algorithms
Predictive Analytics: AI algorithms analyze historical data and current conditions to predict spill dynamics and spread patterns. This predictive capability allows for better resource allocation during cleanup efforts.
Automated Detection: Machine learning techniques can automatically identify oil slicks in satellite imagery by differentiating them from other features based on contrast and patterns. This automation improves the efficiency of monitoring efforts across large marine areas.
Resource Optimization
Efficient Deployment: AI-driven systems can optimize the deployment of resources by identifying the most affected areas and suggesting targeted responses. This ensures that cleanup operations are both effective and resource-efficient.
Case Study: MV Wakashio Spill
The MV Wakashio incident serves as a prime example of how integrated monitoring systems can enhance spill response:
Real-Time Adjustments: AI-powered systems were critical in assessing the spill’s impact, allowing for real-time adjustments to containment strategies based on satellite data.
Comprehensive Monitoring: The combination of satellite imagery and AI analytics provided a comprehensive view of the spill’s evolution, enabling rapid decision-making by response teams.
The integration of remote sensing technologies and AI in oil spill response represents a significant advancement in environmental monitoring. By enabling early detection, real-time tracking, and predictive analytics, these technologies enhance the effectiveness of spill management strategies while minimizing environmental impacts. As technology continues to evolve, its application in oil spill response will likely become more sophisticated, improving both preparedness and recovery efforts in marine environments.
3. Robotic Cleanup Devices
Robotic cleanup devices are revolutionizing oil spill response by providing autonomous solutions for both underwater and surface cleanup operations. These technologies enhance efficiency, safety, and effectiveness in managing oil spills.
Types of Robotic Cleanup Devices
Autonomous Underwater Vehicles (AUVs)
AUVs are designed to operate underwater, cleaning oil from the seabed and underwater structures. They can navigate complex environments and perform tasks such as detecting and mapping oil spills.
AUVs are particularly useful in deep-water spills where human access is limited. They can be equipped with specialized tools for oil recovery and monitoring.
Surface Drones
Surface drones are equipped with skimmers and Sorbents to collect oil from the water’s surface. They operate autonomously, reducing the risk to human responders during cleanup operations. These drones can cover large areas quickly and efficiently, allowing for rapid response to spills in various environments.
Innovations in Robotic Cleanup Technologies
Example: OilShark Drone System
The Oil Shark drone system has been successfully tested in ports and harbors, demonstrating its efficiency in recovering oil from confined spaces. Its design allows it to navigate tight areas where traditional cleanup methods may struggle.
Equipped with advanced sensors and recovery systems, the Oil Shark can detect oil slicks and deploy skimming mechanisms to collect oil effectively.
Multi-Robot Approaches
Recent research emphasizes the use of heterogeneous teams of autonomous vehicles for oil spill mitigation:
Collaborative Operations: A combination of Autonomous Surface Vehicles (ASVs) and AUVs can be deployed together to enhance spill response efforts. This multi-robot approach allows for more comprehensive coverage and efficient resource utilization.
Studies have demonstrated the effectiveness of coordinated missions involving both ASVs and UAVs (Unmanned Aerial Vehicles) in real-world scenarios, improving the overall response to oil spills.
Robotic cleanup devices, including AUVs and surface drones, represent a significant advancement in oil spill response technology. By enhancing the speed, safety, and effectiveness of cleanup operations, these innovations play a crucial role in mitigating the environmental impacts of oil spills. As technology continues to evolve, the integration of robotic systems into spill response strategies will likely become more prevalent, leading to more efficient management of marine pollution incidents.
4. In-Situ Burning (ISB)
In-situ burning (ISB) is an effective method for managing oil spills by igniting surface oil slicks to rapidly remove large quantities of oil. This technique has evolved with technological improvements that enhance its efficiency and safety, making it a viable option in various spill scenarios.
Overview of In-Situ Burning (ISB)
In-Situ Burning: ISB involves the controlled combustion of spilled oil while it remains on the water surface. This method effectively reduces the volume of oil, converting it primarily into carbon dioxide and water, thus minimizing the need for physical recovery and disposal of the oil.
Conditions for Effective Burning: For successful ignition, the oil slick must be at least 2 to 3 millimeters thick. Factors such as wind, wave conditions, and the degree of emulsification of the oil significantly influence the effectiveness of ISB.
Advantages
Rapid Oil Removal: ISB can quickly eliminate large amounts of spilled oil, preventing further spread and reducing environmental impact.
Minimal Equipment Requirements: Compared to mechanical recovery methods, ISB requires less equipment, primarily specialized tools like fire booms and igniters.
Reduced Waste Volume: The combustion process significantly reduces the volume of oily waste that needs to be handled post-burn, as only a small percentage (approximately 2-3%) remains as residue.
Challenges
Airborne Pollutants: One major concern with ISB is the production of dark smoke plumes during combustion, which can lead to public apprehension regarding air quality and aesthetics.
Fire Control Risks: There is a risk of fire spreading beyond the intended area if not managed properly, necessitating careful monitoring during operations.
Technological Improvements in ISB
1. Controlled Burning Techniques
Recent advancements focus on minimizing airborne pollutants while maximizing oil removal efficiency:
Optimized Combustion Conditions: Research has led to an improved understanding of combustion dynamics, allowing for better control over burning conditions to reduce emissions.
Use of Accelerants: In some cases, accelerants may be introduced to facilitate ignition, especially for heavier oils or emulsified mixtures that require additional energy to combust.
Fire Boom Innovations
Innovations in fire boom technology have enhanced safety and effectiveness during ISB operations:
New Materials: Modern fire booms are designed with materials that ensure better containment of burning oil, reducing the risk of spills escaping the designated burn area.
Improved Design: Enhanced designs allow for easier deployment and stability in rough sea conditions, ensuring that the oil slick remains contained at the required thickness for effective burning.
3. Integration with Other Response Techniques
ISB is often used in conjunction with other response methods:
Combination Strategies: The best spill response strategies typically involve a mix of mechanical recovery, dispersants, and ISB to optimize environmental protection efforts. For instance, containment booms can be deployed alongside ISB to maintain sufficient slick thickness for ignition.
In-situ burning is a powerful tool in the arsenal against oil spills, offering rapid removal capabilities while reducing the logistical burden associated with traditional cleanup methods. With ongoing technological improvements in controlled burning techniques and fire boom designs, ISB continues to evolve as a viable response strategy. However, careful consideration of environmental impacts and public concerns remains essential in its application. As research progresses, ISB’s role in spill management will likely expand, providing a critical option for mitigating the effects of oil spills on marine ecosystems.
Technological innovations are revolutionizing oil spill response, offering faster, more efficient, and environmentally friendly solutions. While challenges like cost and scalability remain, the integration of advanced technologies with traditional methods holds promise for mitigating the devastating impacts of oil spills on marine ecosystems and coastal economies. Governments and industries must invest in these innovations to ensure sustainable and resilient ocean management.
Addressing Oil Spill Risks:
Addressing oil spill risks involves a comprehensive approach that includes risk assessment, prevention strategies, and effective response planning. Here’s a summary of key insights from recent findings regarding oil spill risk management.
Oil Spill Risk Assessment
Importance of Risk Assessments
Risk assessments are essential for understanding the potential impacts of oil spills and for developing effective response strategies. They help identify vulnerabilities in oil transportation and storage, enabling stakeholders to implement preventive measures.
Washington State Department of Ecology emphasizes the need for continuous evaluation of oil transportation methods and associated risks to public safety and the environment. Their assessments focus on major waterways, identifying cost-effective spill-prevention measures while safeguarding public health and local economies.
Tools and Methodologies
GRACE Project: The GRACE project has developed a spill risk assessment model tailored for Arctic waters, incorporating high-resolution AIS (Automatic Identification System) data to evaluate spill probabilities based on historical shipping patterns and environmental conditions. This model aids decision-makers in selecting optimal response strategies and improving emergency preparedness.
International Maritime Organization (IMO) Standards: The use of established methodologies like the Formal Safety Assessment (FSA) helps in systematically identifying hazards, assessing risks, and prioritizing response needs.
Preventive Measures
Identifying Vulnerabilities
Identifying potential spill scenarios is crucial for effective risk management. This includes analyzing vessel traffic patterns, environmental sensitivities, and historical spill data to inform safety measures.
Grays Harbor Vessel Traffic Risk Assessment: This assessment identified critical factors related to oil spill risks in Grays Harbor, focusing on vessel traffic patterns and their potential impacts on local ecosystems and economies.
Regulatory Compliance
Implementing regulatory measures such as improved ship design standards, navigational aids, and regular inspections can significantly reduce the likelihood of spills. Stakeholder engagement is vital in developing these regulations to ensure they address local concerns effectively.
Response Preparedness
Incident Management Systems
Developing robust incident management systems is essential for optimizing response times during an oil spill. These systems enhance coordination among responding organizations, clarify command structures, and improve resource allocation.
Training and Exercises
Regular training exercises are necessary to ensure that personnel are prepared for oil spill incidents. These exercises should simulate real-world scenarios to test response plans and improve readiness.
Community Involvement
Engaging local communities, including indigenous groups and environmental organizations, in planning and preparedness efforts fosters collaboration and enhances overall response capabilities.
Addressing oil spill risks requires a multifaceted approach that combines thorough risk assessments, preventive measures, regulatory compliance, and effective response planning. By leveraging advanced tools like the GRACE project’s spill risk assessment model and fostering community engagement, stakeholders can enhance their preparedness for potential oil spills while minimizing environmental impacts. Continuous improvement in these areas will be crucial as oil transportation methods evolve and environmental challenges persist.
Marine Pollution
Marine pollution is a critical environmental issue primarily driven by plastic waste, agricultural runoff, and untreated sewage. These pollutants significantly impact marine ecosystems, biodiversity, and human health. Here’s an overview of the main contributors to marine pollution and their effects.
Key Contributors to Marine Pollution
1. Plastic Pollution
Over 11 million tons of plastic waste enter the oceans annually, with estimates suggesting that this figure could rise dramatically in the coming decades. Plastic constitutes about 80% of all marine debris, posing severe threats to marine organisms.
Microplastics: Microplastics, which are small plastic particles resulting from the breakdown of larger plastic items, are found in 80% of marine species. They enter the food chain, raising concerns about potential impacts on human health as they accumulate in seafood consumed by humans.
Plastic pollution leads to entanglement and ingestion by marine life, resulting in injury or death. It also disrupts habitats and contributes to the degradation of coral reefs.
Agricultural Runoff
Fertilizers used in agriculture contribute to nutrient runoff, which leads to hypoxic conditions in aquatic environments. This phenomenon creates “dead zones,” such as the Gulf of Mexico dead zone, which spans approximately 7,000 square miles during peak seasons.
Eutrophication: Excess nutrients stimulate algal blooms that deplete oxygen levels in the water, harming fish and other marine organisms. The Gulf dead zone is primarily driven by nitrogen runoff from Midwestern agriculture along the Mississippi River.
Untreated Sewage
Untreated or partially treated sewage is a significant source of pollutants entering rivers and oceans. This discharge introduces pathogens and nutrients into marine environments, exacerbating existing pollution issues.
Health Risks: Sewage pollution can lead to harmful algal blooms and degrade water quality, posing risks to human health through contaminated seafood and recreational waters.
Impacts on Marine Life and Human Health
Marine Ecosystems
Marine organisms face numerous threats from pollution, including habitat destruction, reduced reproductive success, and increased mortality rates due to toxins and physical hazards (like plastics).
A study indicated that over 800 species are affected by plastic pollution through ingestion or entanglement.
Human Health
Microplastics in seafood raise concerns about potential health effects on humans who consume contaminated fish and shellfish. The ingestion of microplastics can lead to exposure to harmful chemicals associated with plastics.
Research highlights gaps in understanding the full extent of microplastic toxicity and its implications for human health.
Marine pollution from plastic waste, agricultural runoff, and untreated sewage poses significant risks to ocean health and biodiversity. Addressing these challenges requires comprehensive strategies that include improved waste management practices, stricter regulations on agricultural practices, and enhanced treatment of sewage before discharge into aquatic environments. Public awareness and engagement are crucial for driving change and protecting our oceans for future generations.
Restoration Approaches: Solutions for Oil Spills and Marine Pollution
Addressing oil spill risks and marine pollution requires a multifaceted approach that combines prevention, cleanup, and restoration efforts. Here’s a comprehensive overview of current strategies and initiatives aimed at managing these environmental challenges.
1. Oil Spill Management and Recovery
Preventive Measures
Enhanced Safety Regulations: Implementing stringent safety standards for oil transportation and storage can significantly reduce the risk of spills. This includes regular inspections and compliance with environmental regulations.
Advanced Monitoring Technologies: Employing state-of-the-art leak detection systems, automatic shut-off valves, and continuous monitoring can help prevent spills before they occur.
Containment and Recovery Techniques
Booms and Skimmers: Deploying floating booms to contain spills and skimmers to remove oil from the water surface is essential for immediate response efforts. These methods help prevent further contamination of shorelines.
Bioremediation: Utilizing natural processes to break down oil contaminants can accelerate recovery. This involves introducing oil-degrading microbes or enhancing natural microbial populations in affected areas.
Restoration Efforts
Ecosystem Restoration: After an oil spill, restoration efforts may include reintroducing species affected by the spill, controlling erosion, and changing management practices to promote recovery.
Monitoring and Assessment: Conducting thorough assessments of ecological impacts is crucial for informing restoration strategies and ensuring effective recovery of affected ecosystems.
2. Tackling Marine Pollution
Reducing Plastic Waste
Circular Economy Models: Promoting circular economy practices, such as recycling and reusing materials, can significantly reduce plastic waste entering marine environments. Banning single-use plastics is also a critical step in minimizing pollution.
Global Initiatives: International efforts like the Global Partnership on Marine Litter aim to reduce plastic leakage by 50% by 2030, emphasizing cooperation among countries to tackle this global issue.
Combating Agricultural Runoff
Sustainable Farming Practices: Advocating for practices such as buffer strips along waterways and precision fertilization can help mitigate nutrient runoff that leads to dead zones in oceans.
Regulatory Policies: Supporting policies like the EU Nitrates Directive, which limits nitrogen use in agriculture, can effectively reduce agricultural runoff into marine environments.
Ocean Clean-Up Projects
The Ocean Cleanup Initiative: This project has successfully removed over 100 tons of plastic from the Great Pacific Garbage Patch in 2023. It employs innovative technologies to intercept plastic in rivers and clean up existing ocean debris.
Global Examples of Coastal Restoration
1. Mangrove Rehabilitation in the Philippines
Following oil spill incidents, efforts have focused on replanting mangroves across 1,000 hectares, enhancing biodiversity, and providing natural storm protection.
Plastic-Free Zones in Indonesia
Local communities have successfully reduced plastic pollution by 30% in coastal areas through grassroots initiatives that promote sustainable practices.
Seagrass Restoration in the UK
The Seagrass Ocean Rescue Project has planted 20 hectares of seagrass to combat pollution while providing critical habitats for marine life.
Challenges and Opportunities
Challenges
Technological Limitations: There are inadequate resources for large-scale oil recovery and microplastic removal operations.
Policy Gaps: Weak enforcement of marine protection laws in developing nations hinders effective pollution management.
Economic Costs: The high expenses associated with cleanup and restoration deter timely action.
Opportunities
Blue Carbon Solutions: Restoring mangroves and seagrass not only absorbs carbon dioxide but also protects coastlines from erosion, contributing to climate change mitigation.
Private Sector Engagement: Corporations are increasingly funding marine cleanup projects to meet sustainability goals, showcasing a growing commitment to environmental stewardship.
International Collaboration: Initiatives like the Global Ocean Alliance aim to protect 30% of oceans by 2030, fostering global cooperation in marine conservation efforts.
Conclusion
Addressing oil spills and marine pollution is crucial for restoring coastal ecosystems and achieving Sustainable Development Goal (SDG) 14, which focuses on conserving oceans, seas, and marine resources. Collaborative efforts among governments, industries, and communities are essential for reversing the damage caused by these pollutants. By leveraging innovative technologies, enforcing strict policies, and empowering local communities, we can protect marine biodiversity and ensure the sustainable use of our oceans for future generations.
Stroy of blog in images
